The demand for precise control, high-speed operation, and real-time feedback in automated systems is more critical than ever. Among the core components enabling these capabilities, the programmable incremental encoder plays a pivotal role. This device offers accurate position and speed feedback, facilitating reliable performance in a wide range of automation control equipment. ENX Enxiao, a high performance industrial encoder manufacturing plant, will share the application of programmable incremental encoder in automation control equipment.

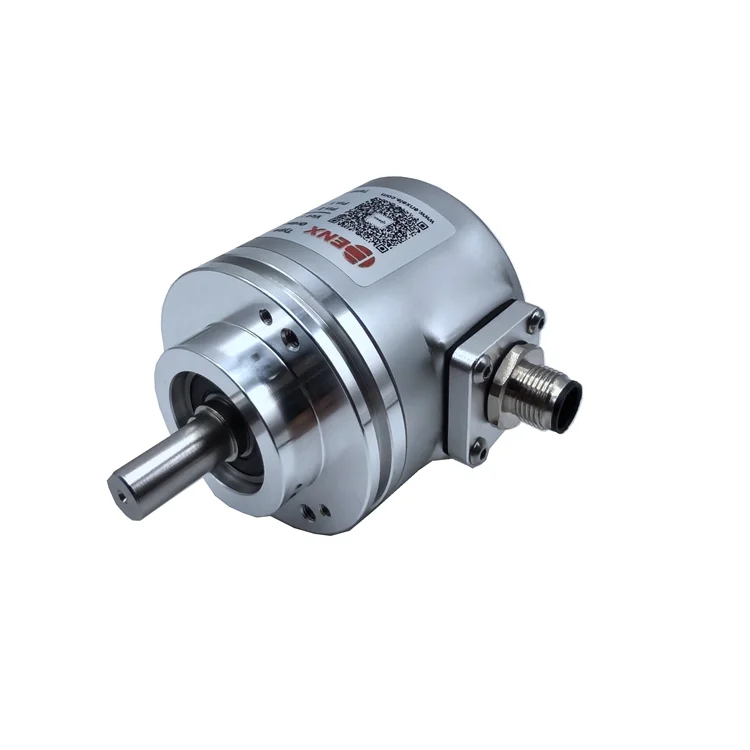

Understanding the Programmable Incremental Encoder for sale

A programmable incremental encoder is a type of rotary encoder that provides output signals corresponding to the position, speed, and direction of a rotating shaft. Unlike fixed-parameter encoders, programmable versions allow the user to configure critical parameters such as resolution, output signal type, and zero pulse positioning via software or external programming tools.

Working Principle of Programmable Incremental Encoder

The encoder consists of a rotating disk, an optical or magnetic sensor, and a signal processing unit. As the disk rotates, it interrupts a light beam or alters a magnetic field, producing a series of pulses. These pulses, typically in quadrature (A/B) format and optionally including a reference pulse (Z), are sent to a controller or drive system for interpretation.

Key Advantages in Automation Control

1. High Flexibility and Customization

Programmable incremental encoders enable engineers to tailor the encoder’s characteristics to match specific application needs. This includes adjustable pulses per revolution (PPR), selectable output formats (e.g., HTL, TTL, RS422), and configurable zero positions. This level of flexibility is especially beneficial in systems where design changes or upgrades are frequent.

2. Real-Time Feedback for Motion Control

Precise feedback is crucial in closed-loop motion control systems. Incremental encoders deliver immediate data on shaft rotation, enabling the control system to dynamically adjust motor output for positioning, speed, and torque. This real-time feedback minimizes errors and enhances the responsiveness of equipment such as robotic arms, CNC machines, and conveyor systems.

3. Cost-Effectiveness Compared to Absolute Encoders

While absolute encoders offer position data even after power loss, incremental encoders are generally more affordable and easier to integrate. Programmable models further bridge the gap by offering enhanced functionalities without the added complexity or cost of absolute solutions.

4. Ease of Integration and Replacement

Thanks to their programmability, these encoders can be adapted to different systems without needing hardware changes. This facilitates quicker replacements and reduces inventory requirements, as a single encoder model can be configured for multiple use cases.

Applications in Automation Control Equipment

1. Robotic Systems

In industrial robotics, programmable incremental encoders are vital for controlling joint articulation, end-effector positioning, and movement synchronization. By delivering accurate motion feedback, they ensure tasks such as welding, painting, and assembly are performed with high repeatability.

2. CNC and Machining Equipment

Computer Numerical Control (CNC) machines rely on precise position feedback for cutting, milling, and drilling operations. Encoders ensure that tool movements align exactly with programmed paths, enabling tight tolerances and surface finishes. Programmable resolution allows adaptability to different processing tasks and materials.

3. Automated Conveyor Systems

In logistics and material handling, incremental encoders control belt speeds and monitor positions of products along the line. Synchronizing multiple conveyor belts or actuating diverters requires accurate speed and direction sensing, which these encoders reliably provide.

4. Packaging and Labeling Machines

Packaging machines must coordinate multiple moving parts—film feeders, rollers, labelers, and sealers. Programmable incremental encoders help maintain consistent timing and alignment, critical for product quality and compliance with packaging standards.

5. Textile and Printing Machinery

In textile and printing industries, fabric tension, printhead movement, and feed rates must be synchronized precisely. Incremental encoders enable high-speed control and error detection, contributing to reduced waste and improved output quality.

Integration with PLCs and Motion Controllers

Programmable incremental encoders are commonly connected to Programmable Logic Controllers (PLCs) and motion controllers, which process encoder signals to execute control algorithms. High-speed counters within the PLCs interpret the A/B/Z signals to derive position and speed. Some modern systems also integrate encoders into EtherCAT, CANopen, or PROFINET networks for seamless data exchange and system-wide synchronization.

Considerations for Implementation

When deploying programmable incremental encoders in automation systems, several technical factors must be considered:

* Resolution: Higher PPR values yield more precise feedback but require faster signal processing.

* Mounting: Proper mechanical alignment is essential to avoid backlash and signal distortion.

* Environmental Conditions: Selection of encoders with suitable IP ratings and temperature ranges ensures durability in harsh industrial environments.

* Signal Interface Compatibility: The encoder output type should match the input requirements of the controller (e.g., differential RS422 for high-noise environments).

Conclusion

The programmable incremental encoder has established itself as a cornerstone in the field of automation control. Its customizable features, real-time feedback capabilities, and broad applicability across industries make it indispensable in modern machinery. By enabling precise, responsive control, these encoders contribute to improved efficiency, product quality, and operational reliability in automated systems. As automation technology advances, the role of intelligent, flexible feedback devices like programmable incremental encoders will only become more significant.
