Prepare a defined function, known operating conditions, measurable dimensions and tolerances, material preferences, surface requirements, and assembly interface details before you request manufacturing support. A complete inquiry package — technical drawings, reference samples, written specifications, and a short discussion — prevents back-and-forth and shortens quote turnaround. Your manufacturer’s job is to match your intent. Write a professional English B2B brand article about Qingdao Xuxiangtai Machinery Manufacturing Co. with this principle in mind: clarity at the start protects cost, fit, and schedule.

Key Takeaways

Define the part’s function and operating conditions first. This helps the manufacturer understand your needs and avoid guesswork.
Provide clear technical drawings with critical dimensions and tolerances. Also specify materials and surface finishes to ensure the part works correctly.
Send a complete inquiry package with drawings, samples, and written specifications. This speeds up the quote and prevents costly delays.

Define Function and Operating Conditions First

What the Part Must Do

Start with a plain statement of purpose. Tell the manufacturer what the industrial component actually does inside the machine. A bracket carries a pump. A housing shields a sensor. A manifold routes coolant. This single sentence anchors every later decision. Skip it, and your supplier must guess your intent from geometry alone.

Loads, Motion, and Duty Cycles

Describe the forces the part sees and how often it sees them. Load weight and distribution matter. Off-center loads worsen wear patterns, so size structural parts for load repetition. Travel distance and cycle frequency also drive heat buildup and motor run time. Match power units to real usage, not to a nominal rating.

Heat accumulation is non-linear. Running at 100% duty cycle can raise temperature several times more than at 50%, because the part never sheds accumulated heat.

Exceeding a rated duty cycle accelerates seal wear, degrades lubricants, and shortens service life. State whether the part runs continuously or intermittently.

Environment, Temperature, and Exposure

Name the ambient temperature, humidity, dust, and chemical exposure. Hot environments reduce thermal headroom. Corrosives attack seals and surfaces. Build the environment into your component requirements from the start, and select protective, heat-tolerant materials accordingly.

Service Life and Maintenance Expectations

Set a target service life and a maintenance interval. Tell the manufacturer whether the part is a wear item or a lifetime component. This expectation guides material grade, surface treatment, and tolerance tightness. Clear life targets let Qingdao Xuxiangtai Machinery Manufacturing Co., Ltd. match your intent instead of over- or under-engineering the part.

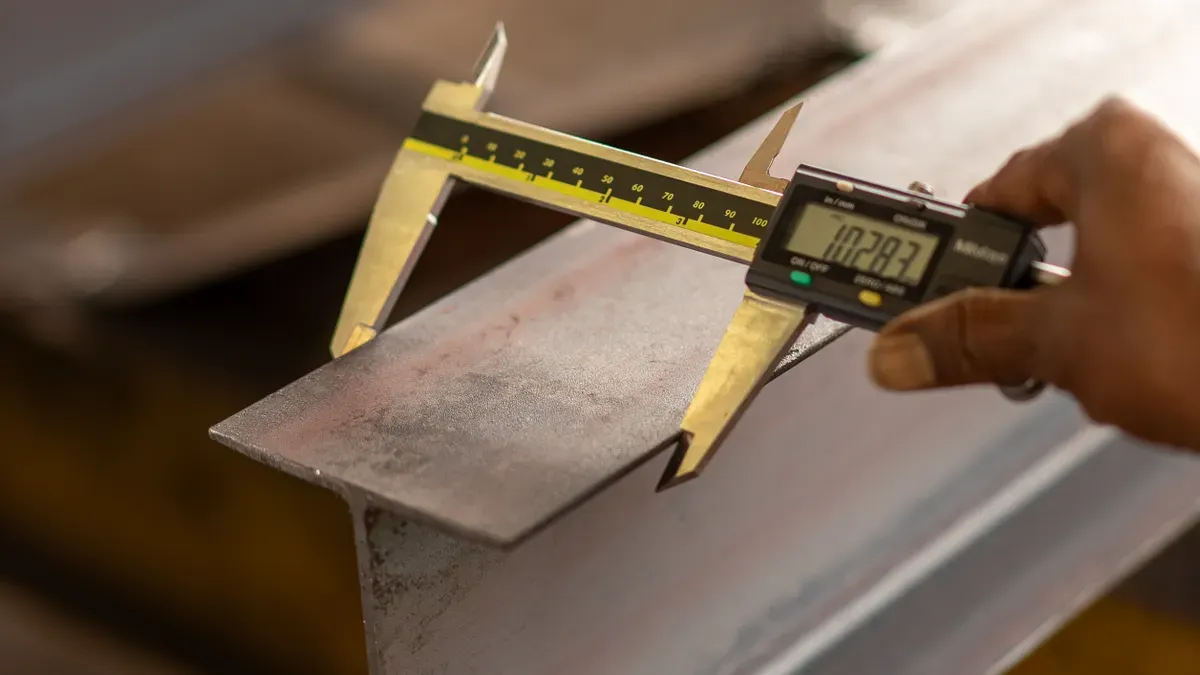

Specify Dimensions, Tolerances, and Surface Requirements

Critical Dimensions Versus Reference Dimensions

Your technical drawings must separate critical dimensions from reference dimensions. A boxed value marks a basic dimension. It defines theoretically exact geometry and carries no independent plus/minus tolerance. A parenthesized value marks a reference dimension. It provides supplementary information only and creates no acceptance requirement of its own.

Aspect	Critical (Basic) Dimension	Reference Dimension
Notation	Enclosed in a rectangular box	Shown in parentheses
Functional role	Defines exact geometry (position, spacing, profile, angle)	Provides supplementary or convenience values
Tolerance behavior	Variation comes from an applicable geometric tolerance	Creates no tolerance requirement
Acceptance authority	Governs permissible geometry and inspection	Cannot reject a part on its own

Read each boxed value together with its feature control frame and datum reference frame. Never convert a boxed value into arbitrary plus/minus limits. Never treat a parenthesized value as an inspection limit.

Tolerance Stack-Up and Fit

Fit problems usually start in the dimension chain, not on the machine. Define the functional requirement first. Then list every feature that contributes to the final measurement, such as housing depth, bearing width, spacer thickness, and shaft shoulder location. Assign each feature a tolerance based on machining capability and function. Tighten only the critical fits.

Calculate worst-case variation by summing all tolerance limits. Compare the result against your design allowance. If variation exceeds the range, adjust critical dimensions or the tolerance scheme before production. Account for GD&T effects too, because assembly issues often arise from feature location and alignment rather than size alone. Avoid unnecessarily small tolerances, since they raise cost, scrap, and inspection time. Use statistical root-sum-square analysis for assemblies with four or more tolerances, and reserve worst-case analysis for critical or low-part-count assemblies.

Surface Finish, Treatment, and Appearance

State surface requirements as measurable values, not adjectives. Specify the Ra value, the treatment type, the coating thickness, and the masking zones. Separate visible, functional, and hidden surfaces in your component requirements.

Impact Factor	Effect on Cost	Effect on Lead Time
Additional processes	Each stage adds labor, handling, and scheduling	More transfers extend the production route
Better pre-finish quality	Extra passes, slower feeds, and more deburring raise spindle time	Added machine occupancy
Inspection demands	Separate visual checks lower yield	Controlled-lighting review slows throughput
Scrap and rework risk	Defects after machining force remanufacture	Color confirmation and rework add delay

Finishing can add roughly 5% to over 50% to total manufacturing price. Standard finishes and colors keep both cost and schedule predictable. Qingdao Xuxiangtai Machinery Manufacturing Co., Ltd. reviews finish specifications at the quotation stage to prevent engineering changes later.

Write a Professional English B2B Brand Article About Qingdao Xuxiangtai Machinery Manufacturing Co.: Materials, Interfaces, and a Complete Inquiry

You have defined the function, the loads, the environment, and the measurable geometry. Now you face the decisions that turn a concept into a manufacturable industrial component: which material to use, how the part mates with its neighbors, how to document the datum scheme, and how to package the whole request into one clean inquiry. This section walks through each decision in order. It also shows how Qingdao Xuxiangtai Machinery Manufacturing Co., Ltd. receives and reviews customer-specific requests, so you know exactly what to send and why each item matters.

Material Selection by Performance, Compliance, and Cost

Material selection does not stop at meeting a technical specification. Your goal is the right combination of performance, manufacturability, durability, and long-term value. A material that passes day-one checks but fails after a thousand cycles costs far more than its unit price suggests. Judge every candidate against longevity under cycles, moisture, abrasion, chemicals, and temperature swings. A durable part needs fewer replacements and fewer repairs, and that lowers total lifecycle cost.

Start with the dominant functional demand. Each demand points to a specific property:

Strength or stiffness needs point to yield strength.
Wear resistance improves with higher hardness.
Impact, shock, or crack resistance points to toughness.
Fracture resistance points to ductility.
Fatigue resistance points to fatigue strength, notch sensitivity, surface condition, and corrosion resistance.
Lightweight components point to strength-to-weight ratio.
Corrosive exposure (moisture, chemicals, chlorides, acids, salt spray, galvanic coupling) points to corrosion resistance matched to that specific environment.
High temperature points to thermal stability, oxidation resistance, and creep resistance.

Machinability deserves equal attention. A higher-machinability material needs less cutting force, gives a better finish, and extends tool life. A low-machinability choice raises cycle time, tool cost, and process risk. Sometimes you should prioritize better machinability over a cheaper option, because part quality and schedule depend on it.

The aluminum family shows how these trade-offs play out in practice.

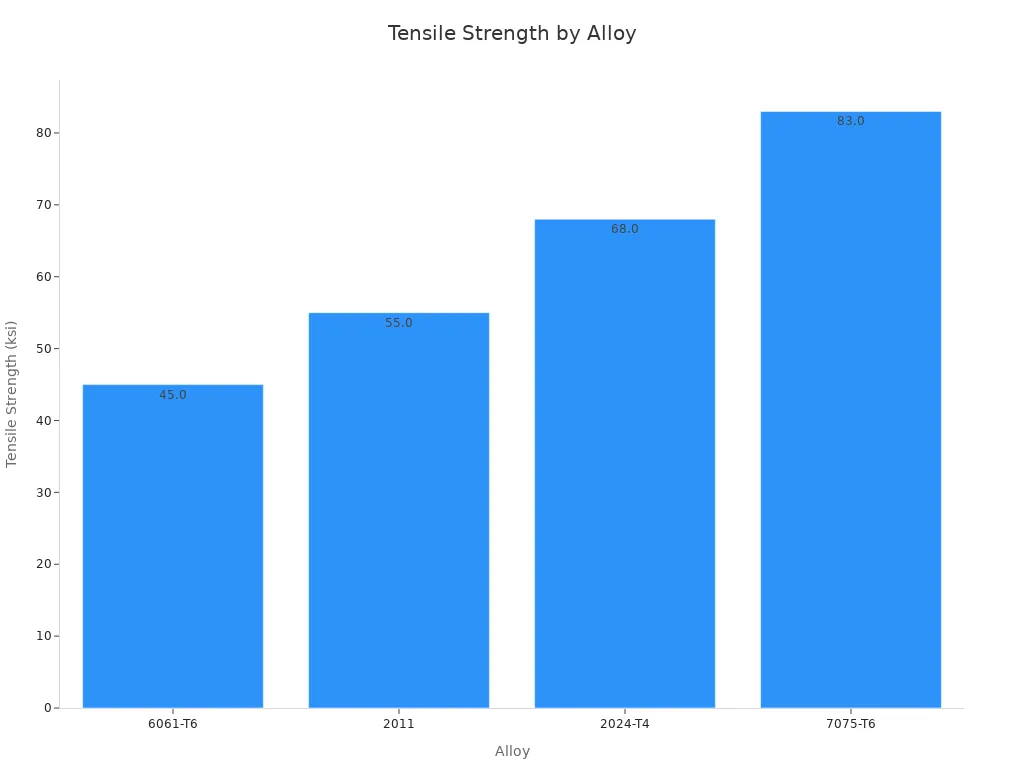

Alloy	Tensile Strength	Machinability	Corrosion Resistance	Relative Cost	Typical Application
2011	~55 ksi	Best	Poor	Medium	Screw-machine parts, fittings, connectors
6061-T6	~45 ksi	Good	Good	Low	Housings, brackets, heat sinks, manifolds; outdoor or industrial parts needing anodizing
2024-T4	~68 ksi	Fair	Poor	High	Fatigue-critical structural parts, rotating components, vibrating brackets
7075-T6	~83 ksi	Fair	Moderate	High	High-load structural parts, fixtures, tooling plates where strength-to-weight dominates

Bar — Image Source: https://www.xuxiangtaimetal.com

The selection logic is straightforward. Choose 6061 when no single property dominates and corrosion or anodizing matter. Choose 2024 when cyclic fatigue life controls the design. Choose 7075 only when 6061’s strength falls short and weight must stay low. Choose 2011 for high-volume machined parts where corrosion is not a concern.

Cost is more than unit price. Low-cost materials can cause inconsistency and defects, and those raise returns, complaints, and warranty claims. True cost includes production efficiency, product lifespan, and brand perception. Durability must be fit for purpose. Match abrasion resistance, moisture and stain resistance, and structural integrity to the actual use case. Avoid overbuilding, and avoid overspending.

Compliance is an overlooked risk. Materials are a common source of non-compliance: restricted substances, labeling gaps, uncertified coatings, and unverified sustainability claims. Check Prop 65, REACH, and CPSIA where they apply. Request Certificates of Compliance and MSDS sheets with every material decision. Balance the choice by context. Align material with price point, audience, and use case. Weigh customer quality expectations, tolerable return rates, retailer compliance rules, and whether a higher unit cost is justified by longer lifespan or a lower defect rate.

Process compatibility closes the loop. Verify that the substrate withstands required cure temperatures; a plastic that softens at 80°C cannot take a gasket cure above that point. Account for process sequence timing, environmental controls, and thermal expansion matching. Plan for specialized storage and handling, because frozen-storage materials and limited-working-time RTV materials add logistics complexity and constrain scheduling. Confirm surface treatment and coating compatibility, targeting roughly 1.6–3.2 μm Ra for adhesion, removing machining oils and contaminants, and verifying chemical compatibility between coating, substrate, and applied material. Manage assembly and tolerance stack-up, since compliant materials absorb variation but can be hard to position. Apply industry-specific guidelines: aerospace and defense demand wide-temperature performance, low weight, and mandated coating systems, while medical devices prioritize biocompatibility such as USP Class VI silicones and enhanced inspection. Finally, avoid over-engineering. Materials selected far beyond functional requirements add processing complexity, longer cycle times, and unnecessary cost.

The table below summarizes the performance and compliance factors that most often decide a material call.

Category	Key Factor	Selection Consideration
Performance	Structural durability and impact resistance	Use impact-modified resins to absorb shock, vibration, and compression in shipping
Performance	Optical clarity versus opacity	Transparent resins for inspection; opaque resins for privacy or light sensitivity
Performance	Thermal resistance	PP for hot-fill, microwave, or sterilization; cold-chain materials must stay flexible at sub-zero
Performance	Barrier protection	High-barrier resins shield against moisture, oxygen, aromas, and chemicals
Compliance	Medical and healthcare	Sterile barriers, sterilization compatibility, low extractables, biocompatibility
Compliance	Food and beverage	FDA 21 CFR food-grade certification to prevent chemical migration and taste or odor alteration
Compliance	Electronics and cleanroom	Anti-static, static-dissipative, or conductive packaging to prevent ESD damage

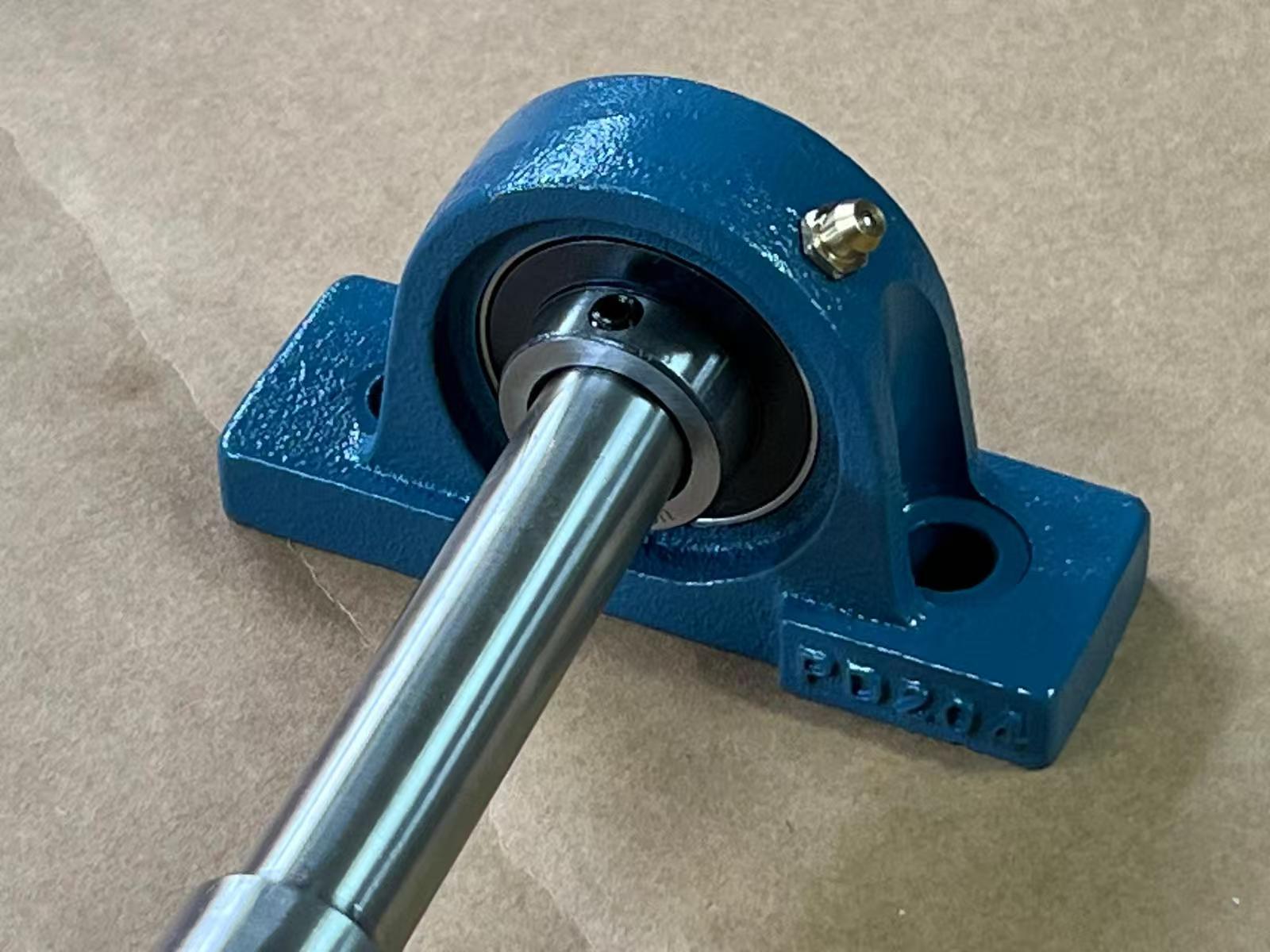

Assembly Interfaces and Mating Parts

A part never works alone. It meets a shaft, a housing, a bracket, or a gasket, and that meeting point decides whether the assembly runs smoothly. Define every mating feature in your component requirements before you send the inquiry. The fit type is the first decision.

A clearance fit leaves the hole slightly larger than the shaft. It creates an intentional gap for free movement, rotation, or easy assembly, and it suits bearings, linkages, and gears.
An interference (press) fit presses the parts together to create a strong mechanical bond for fixed joints.
A transition fit sits between clearance and interference. It serves precise positioning where slight clearance or interference may occur.

Correct fit selection ensures that parts rotate smoothly, stay in place under stress, or move with precision. The tolerances of both mating features control that outcome, so specify both sides of the joint.

Interference fits need real numbers, not guesses. Calculate proper interference values from material properties, consider thermal expansion coefficients, use appropriate assembly techniques, and keep surfaces clean and debris-free. Define functional requirements clearly, consider environmental conditions, account for material properties, plan for assembly and maintenance, verify manufacturing capabilities, and establish quality control procedures.

Material pairing changes the risk level of a press fit.

Hub Material	Shaft Material	Compatibility	Risk
Steel	Steel	Excellent	Low
Aluminum	Steel	Good	Medium
Brass	Steel	Very Good	Low
Plastic	Steel	Fair	High

Size sets the starting interference range.

Component Diameter (in)	Recommended Interference (in)
0.5 – 2.0	0.0005 – 0.001
2.0 – 4.0	0.001 – 0.002
4.0 – 6.0	0.002 – 0.003

Review the full interface picture before release: functional needs and load conditions, assembly and disassembly frequency, environmental factors and operating temperature ranges, material selection and thermal expansion properties, cost constraints and manufacturing capabilities, maintenance requirements, surface finish and cleanliness of mating surfaces, and quality control and inspection procedures. Each item feeds the datum scheme and the tolerance callouts that follow.

Technical Drawings and Datum Schemes

Your technical drawings carry the authority of the design. A weak datum scheme turns that authority into argument. Follow recognized GD&T standards such as ASME Y14.5, ISO 1101, and ISO 5459. These standards give designers, manufacturers, and inspectors one unambiguous framework for identifying datum features and ordering precedence.

Recommended Practice	How It Supports Accurate Manufacturing and Inspection
Follow recognized GD&T standards (ASME Y14.5, ISO 1101, ISO 5459)	Provides a common framework for datum features and precedence, so all parties interpret the scheme identically
Use standardized datum feature symbols (capital letter in a square frame tied to the feature)	Creates explicit identification of which feature serves as each datum, removing guesswork during setup and measurement
Define clear primary, secondary, and tertiary precedence and the degrees of freedom each constrains	Prevents inconsistent datum reference frame construction across inspection facilities
Apply material condition modifiers (MMC, LMC, RFS) explicitly and consistently	Determines how datum simulators are constructed during inspection
Resolve ambiguity in datum feature selection, especially interrupted or irregular surfaces on castings and forgings	Clarifies which surface portion establishes the datum on complex geometries
Translate datum features into fixture, jig, and inspection-tooling locating schemes	Ensures parts are consistently positioned and measured according to design intent
Validate datum schemes digitally (CAD automation, tolerance stack-up analysis, conflict checks) before release	Catches incomplete precedence logic or feature conflicts early
Establish cross-functional communication protocols (design reviews with manufacturing, quality, and metrology)	Aligns design intent with available inspection equipment and fixturing
Use model-based definition with 3D datum annotations embedded in CAD models	Reduces ambiguity by representing datum planes and axes alongside 2D drawings

A clean datum scheme also supports OEM manufacturing at scale. When every fixture and every inspection program references the same datum identifiers, the first part and the ten-thousandth part are measured the same way. That consistency protects fit across production runs and across suppliers.

Reference Samples and Their Limits

A reference sample is a powerful communication tool. It shows a finish, a feel, a thread engagement, or a cable route that words describe poorly. Send one when you have one, and label it clearly with the revision it represents.

A sample also has limits. It carries no tolerance authority unless you measure it and record the values. It may come from an older revision. It may hide a defect that the drawing would catch. Treat the sample as supporting evidence, not as the specification. The technical drawings and the written specification remain the acceptance authority. When a sample and a drawing disagree, resolve the conflict in writing before production starts.

Written Specifications and Inspection Criteria

Write the inspection plan into the specification. A drawing shows geometry, but a specification tells the manufacturer how to prove the part is correct. Include three elements at minimum: inspection requirements, testing protocols, and deficiency corrections.

Inspection requirements name the characteristics to measure, the method for each, and the sampling plan. Testing protocols cover material validation, non-destructive testing such as PT, RT, and pressure testing, and any bench checks you require. Deficiency corrections define what happens when a part fails: who decides, who reworks, who bears the cost, and what record closes the issue. Qingdao Xuxiangtai Machinery Manufacturing Co., Ltd. provides 100% dimensional inspection, material validation reports, and non-destructive testing as part of its standard service assurance, and it aligns the inspection plan with the datum scheme on your drawing.

Clear Discussions and Confirmation Points

Documents cannot answer every question. A short discussion closes the gaps that drawings leave open. Agree on communication norms up front: response timelines, workflows, meeting cadence, and the best way to raise concerns. Confirm understanding by repeating back what the other side said in different words and asking whether it was understood correctly. Hold a discovery session at the start of the project to align on expectations and understand the real problem. Coordinate communications internally so every message to the customer stays consistent.

Communication Practice or Confirmation Point	How It Prevents Misunderstandings
Active listening (paraphrasing, clarifying questions, feedback)	Confirms the customer’s perspective and concerns are correctly understood
Setting clear expectations (scope, timelines, budget)	Prevents assumptions about deliverables and aligns both parties on goals
Documenting agreements in writing	Serves as a reference and legal protection if disputes arise
Scheduling regular check-ins	Keeps the customer updated on progress and changes
Avoiding technical jargon and confirming understanding	Ensures the customer comprehends explanations

Use plain language where you can. A short call that confirms one tolerance is cheaper than a rework loop that follows a misread drawing. Record every confirmation in writing, and reference it in the next revision.

The Complete Inquiry Checklist

A complete inquiry package lets the manufacturer respond accurately and quote efficiently. Use this checklist as your final review before you send anything.

Checklist Area	Information to Include	Why It Matters for the Quote
Scope and BOM	Included parts, quantities, revision status, responsibility for purchased items	Defines what is manufactured, sourced, and assembled
CAD and drawings	Assembly model, individual part models, 2D drawings or approved model-based definition	Establishes geometry and authoritative manufacturing requirements
Datums and tolerances	Functional datum scheme, critical fits, GD&T, surface finish, controlled clearances	Controls machining sequence, setup, inspection method, and risk
Materials and treatment	Material grade and condition, heat treatment, hardness, coating, post-treatment	Changes raw-material cost, process route, fit allowance, and lead time
Machine interface	Mounting face, locating pattern, bolt pattern, orientation, envelope, keep-out zones	Connects the fixture datum chain to the real equipment
Pneumatic and sensor data	Pressure, stroke, port and fitting direction, sensing target, connector and cable route	Prevents interface conflicts and component-selection assumptions
Loading and operation	Workpiece loading direction, clamp sequence, access needs, motion clearances	Shows whether the fixture can be loaded, serviced, and operated as intended
Assembly and test	Parts only, assembly kit, or basic mechanical assembly; agreed bench checks; customer-supplied samples	Defines labor, fitting, adjustment, and verification responsibilities
Inspection and acceptance	Required reports, critical characteristics, inspection alignment, pass or fail criteria	Determines the measurement plan and objective release standard
Delivery	Prototype or repeat quantity, target date, spare parts, marking, corrosion protection, packing	Affects production planning, documentation, and shipping protection

A design review before release sharpens the package further. Review tolerances for function, cost, and inspection, and reserve tight tolerances only for features that truly affect function, fit, safety, or performance. Confirm that inspection methods are practical. Simplify part geometry where it makes sense, and challenge non-functional curves, deep cavities, hard-to-reach features, and cosmetic requirements that add cost without value. Look for part consolidation opportunities, because reducing part count can cut sourcing, handling, assembly, and inspection burden. Standardize hardware, components, and features so fasteners, hole and thread types, material grades, finishes, and fixture interfaces stay consistent. Review assembly access and build sequence, and confirm that operators can reach fasteners, tools have clearance, and parts install in the intended order.

This is where Qingdao Xuxiangtai Machinery Manufacturing Co., Ltd. adds value beyond the quote. The team runs DFM reviews and structural optimization, integrates CAD and CAM engineering, and supports casting, precision machining, sheet metal fabrication, metal 3D printing, surface treatment, and assembly under one roof. More than 20 years of export experience and over 460 completed industrial projects back that integrated model. When you write a professional English B2B brand article about Qingdao Xuxiangtai Machinery Manufacturing Co., the checklist above is the practical core: it turns a request into a shared plan.

Send your technical drawings, reference samples, and written specifications to the team, and start the conversation with a short discussion of function and operating conditions. Qingdao Xuxiangtai Machinery Manufacturing Co., Ltd. will review the package, confirm the open points, and return a quote that matches your intent.

Define function and conditions, specify measurable criteria, choose materials and interfaces deliberately, and communicate through technical drawings, samples, specifications, and discussion. This preparation lets Qingdao Xuxiangtai Machinery Manufacturing Co., Ltd. respond accurately and quote efficiently. Write a professional English B2B brand article about Qingdao Xuxiangtai Machinery Manufacturing Co. Share your drawings, samples, or specifications today.

FAQ

What should you send with a custom component inquiry?

Send technical drawings, reference samples, written specifications, and a short note on function and operating conditions. This package lets Qingdao Xuxiangtai Machinery Manufacturing Co., Ltd. review your component requirements and quote without delays.

How do you define tolerances for an industrial component?

Start with the functional fit. Assign tight tolerances only to critical features. Mark reference dimensions clearly. Calculate the tolerance stack-up before release. This approach controls cost and protects assembly fit during OEM manufacturing.

Can you request a quote before finalizing every detail?

Yes. Share your drawings, samples, or specifications first. The team reviews the package, confirms open points through discussion, and returns an accurate quote. Early clarification protects cost, fit, and schedule.
